Benthic Macroinvertebrate Surveys

The sensitivity of macroinvertebrates to changes in environmental quality render them an integral part of any biomonitoring program.

Our Macroinvertebrate Biologists

cream-cahill-mayfly-nymph-wide_1

Maccaffertium ithaca (mayfly nymph)

The sensitivity of macroinvertebrates to changes in environmental quality renders them an integral part of any biomonitoring program. The EnviroScience Benthic Macroinvertebrate Team consists of entomologists and aquatic biologists who are skilled at utilizing a variety of methods to collect benthic macroinvertebrates from aquatic habitats, including quantitative, semi-quantitative, or qualitative methods, depending on project requirements. These macroinvertebrate data are used individually or in combination with other environmental characteristics (habitat, fish, and/or physical and analytical chemistry) to assess the extent of environmental impairment often caused by pollutants.

The aquatic macroinvertebrate biologists at EnviroScience are nationally certified in identifying both eastern and western taxa. Our macroinvertebrate team has extensive experience using these organisms to monitor water quality throughout the northeast, midwest, and southeast for a diversity of clients, including local municipalities, private industries as well as state and federal government agencies.

Our macroinvertebrate biologists are qualified according to both national and state standards.  EnviroScience taxonomists hold the following certifications:

  • SFS (NABS) Certified Level 2 Group 1 General Arthropods/Eastern
  • SFS (NABS) Certified Level 2 Group 3 Eastern Chironomidae
  • SFS (NABS) Certified Level 2 Group 3 Eastern EPT
  • SFS (NABS) Certified Level 2 Group 3 Western Chironomidae
  • SFS (NABS) Certified Level 2 Group 3 Western EPT
  • Ohio EPA Level 3 QDC Macroinvertebrates for the collection, identification, and evaluation of macroinvertebrate communities

What are Macroinvertebrates?

By definition, macroinvertebrates are organisms without backbones, which are visible to the eye without the aid of a microscope.  Aquatic macroinvertebrates live on, under, and around rocks and sediment on the bottoms of lakes, rivers, and streams. As a result of their habitat choice, macroinvertebrates are often regarded as “benthos,” which refers collectively to organisms that live on, in, or near the bottom.    Examples of freshwater benthic macroinvertebrates include the immature and adult stages of many different types of invertebrates.  A freshwater benthic community may consist of the immature stages of many flies, beetles (adults and immatures), mayflies, caddisflies, stoneflies, dragonflies, aquatic worms, snails, leeches, and numerous other organisms that inhabit the benthos.

How are these organisms used in environmental assessments?

Benthic macroinvertebrates, especially aquatic insects, represent a choice group of organisms used in biological monitoring programs. Macroinvertebrates within the same system may be residents for several months to multiple years, depending on the lifespan of the particular organism. Macroinvertebrate communities, therefore, reside in an aquatic system long enough to reflect the chronic effects of pollutants and yet short enough to respond to relatively acute changes in water quality.  Unlike fish, these populations tend to be relatively immobile, and as a result, are continuously exposed to the constituents of the surface water they inhabit. Thus, because of the limited mobility of macroinvertebrates and their relative inability to move away from adverse conditions, the location of chronic sources of pollution often can be pinpointed by comparing communities of these organisms.

Macroinvertebrates exhibit varying responses to changes in water chemistry, water quality, and physical habitat. Each macroinvertebrate’s response to environmental perturbations produces measurable and often predictable shifts in abundance and composition at the community level.

Individually, macroinvertebrates can also be used to indicate sublethal effects, such as mouthpart deformities in chironomid midges (aquatic fly larvae). Benthic macroinvertebrates and chironomids in particular, are used as bioindicators for environmental stress in aquatic ecosystems at different levels, including morphological deformities. Deformities of invertebrates are used frequently as ecotoxicological endpoints in cases of legacy environmental issues.

Benthic Macroinvertebrate Sampling

Many watershed monitoring programs include biological indicators in addition to chemical and physical tests for routine monitoring:Benthic_Macroinvertebrate_Field_Sampling

  • Because of their sensitivity to different degrees of pollution, shifts in macroinvertebrate communities can identify the impacts of pollution as well as the effectiveness of pollution control activities.
  • According to the Clean Water Act, individual states are required to report those waters which do not support their designated uses. Biological surveys directly examine the aquatic communities in streams and any stressors which may affect them, and are, therefore, ideal tools to determine whether a stream’s designated aquatic life uses are supported.
  • Over time, studies of stream macroinvertebrates can be used to identify water quality trends, whether increasing or decreasing, at a site over several years or decades.
  • Surveys of aquatic insect communities can be used to identify areas of concern within streams and rivers, as they can reflect the presence of non-optimal conditions that other measurements (such as chemical monitoring) might miss. Individual stream sites can then be ranked from best to worst in comparison to reference conditions, and priorities can be set for their improvement.
  • Habitat assessments used in conjunction with aquatic surveys can help determine whether shifts in benthic community structure are caused, at least in part, by habitat limitations such as bank erosion, siltation, or substrate embeddedness.
  • To evaluate a catastrophic environmental event, such as a spill or explosion from an environmental standpoint, and to track the acute and chronic effects of a system’s recovery over time.

In addition, aquatic surveys using benthic macroinvertebrates are an integral part of studies conducted to comply with requirements set forth within:

  • NARS
  • Aquatic Resource Permitting
  • Stream monitoring
  • Threatened and endangered habitat surveys
  • NRDA (Natural Resource Damage Assessment)
  • Watershed inventories
  • NPDES (National Pollution Discharge Elimination System) Compliance monitoring
  • TMDL (Total Maximum Daily Load) Studies
  • Satisfy USEPA requirements as part of RCRA or CERCLA
  • Environmental management
  • Site inventory
  • Environmental incident management
  • Construction, development
  • Hydrologic determination
  • Wetlands – emergency permitting, restoration, HHEI

Our experts can provide a customized benthic macroinvertebrate biomonitoring program, which may include the following applications:Rhonda Mandel

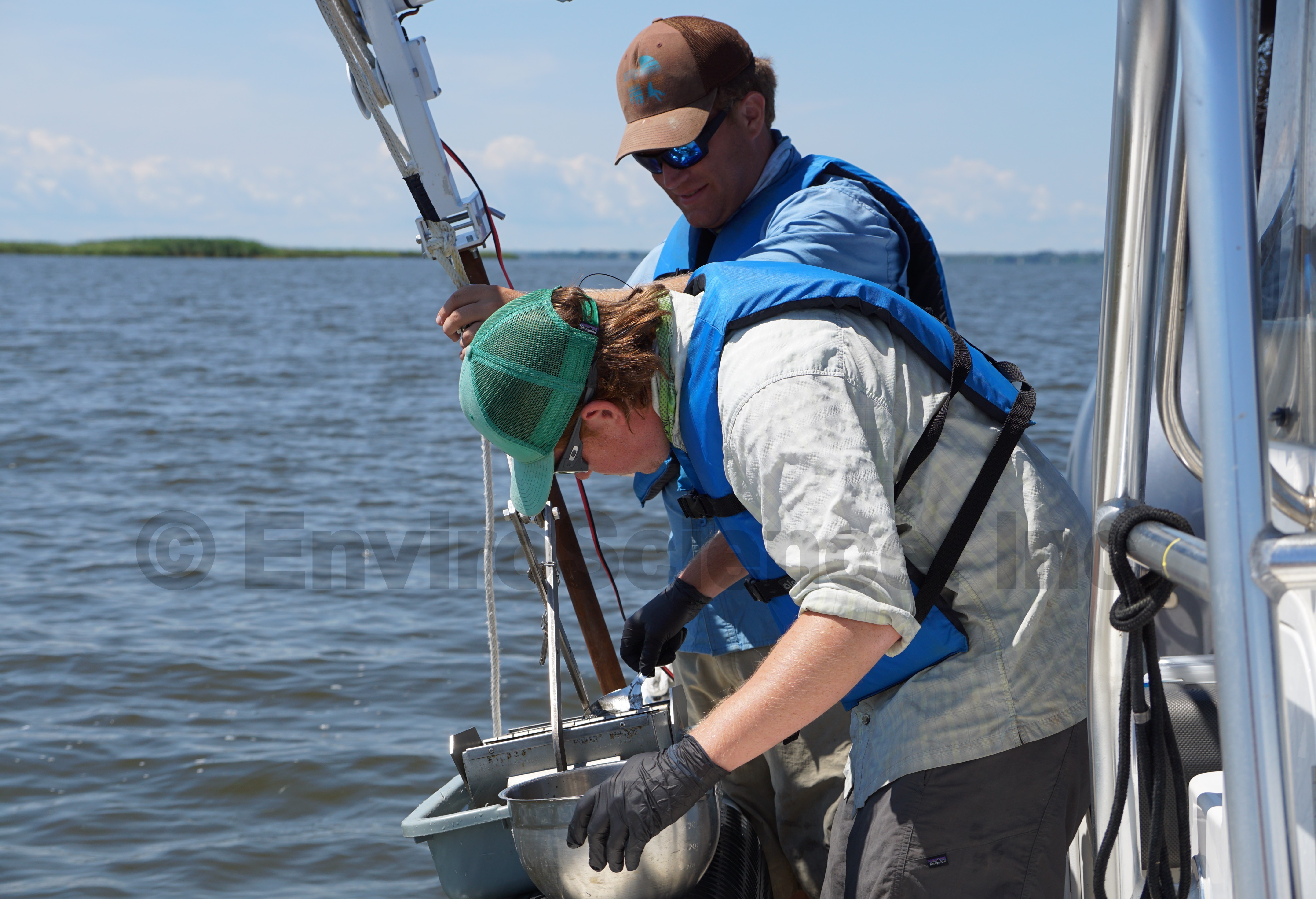

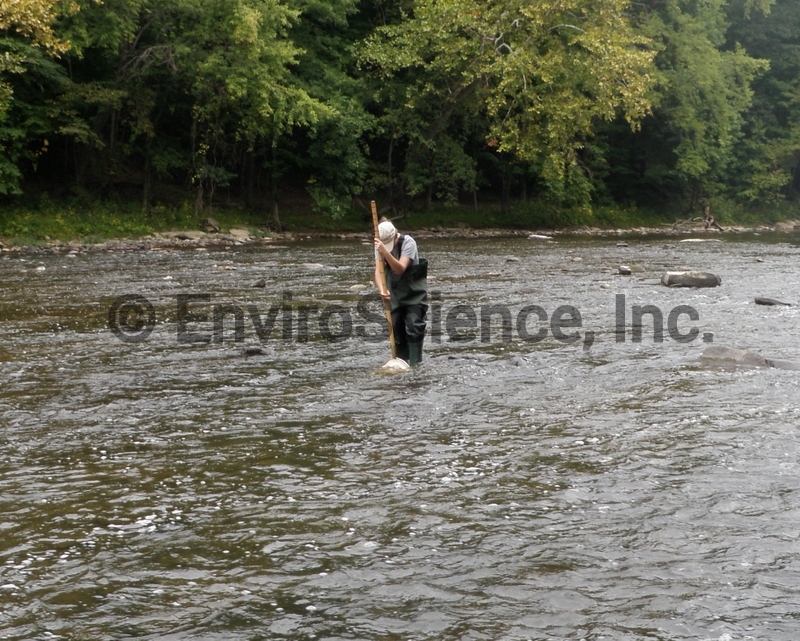

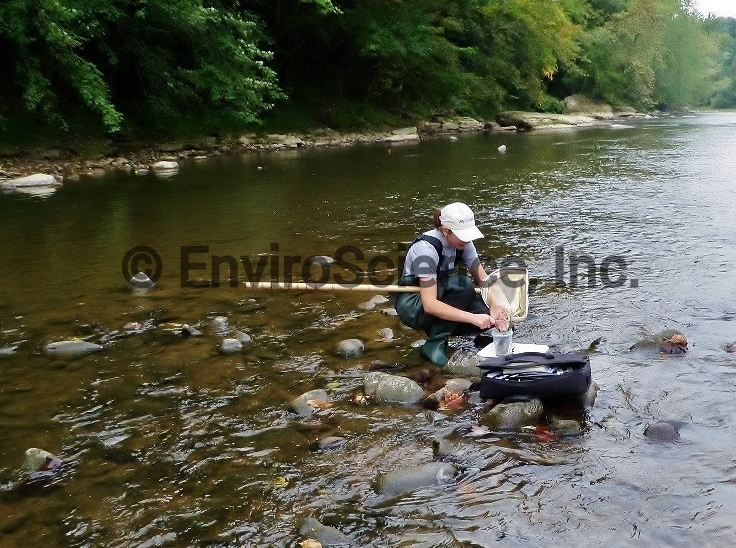

  • Field Sampling – EnviroScience routinely collects aquatic communities from streams, rivers, lakes, and estuaries following standardized protocols.
  • Taxonomic Services – Our taxonomists provide quality data evaluation of samples collected using both federal and state protocols.
  • Study Designs – Our team is able to design water quality studies to assess the level of impairment in relation to reference conditions within a watershed. Our biologists can provide measures to mitigate the source and the effects of stressors on surface water.
  • Data Analysis – Our benthic biologists are experienced in providing detailed analyses of the structure and function of benthic communities through the use of state and federal protocols.
  • Water Quality Monitoring – Using quantitative stream assessment analysis, such as the invertebrate community index (ICI), ES’s macroinvertebrate biologists can determine the current attainment status of a particular surface water.

Chironomus Normal mentum..photo courtesy of Brian Duffy Chironomus middle tooth ...photo courtesy of Brian Duffy Chironious Kohn Gap...photo courtesy of Brian Duffy

Chironomus L to R: deformed middle tooth, normal, asymmetrical. Photos courtesy of Brian Duffy.
